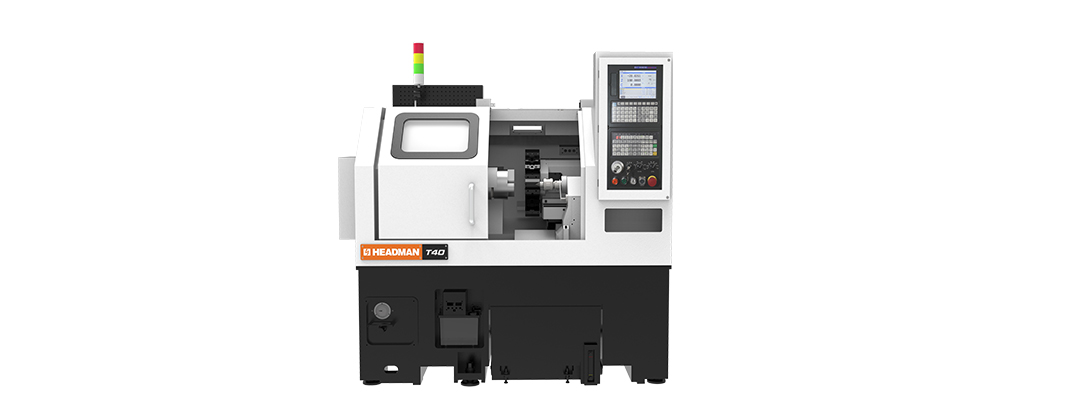

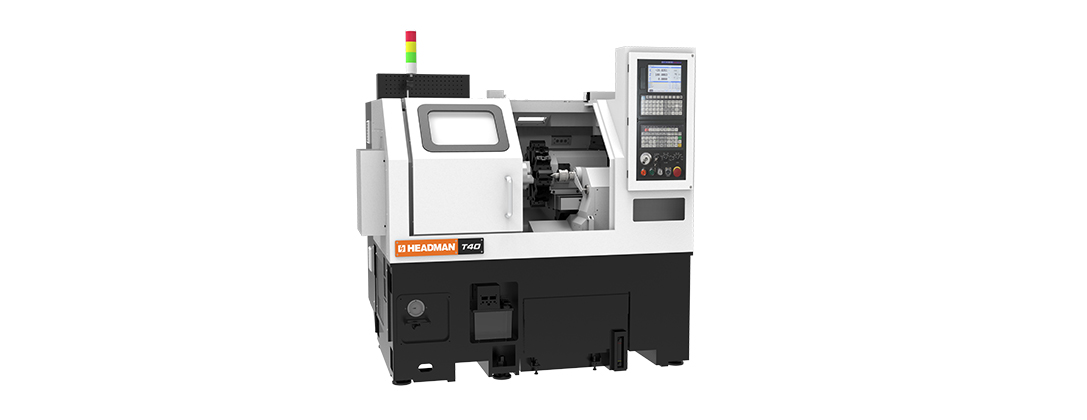

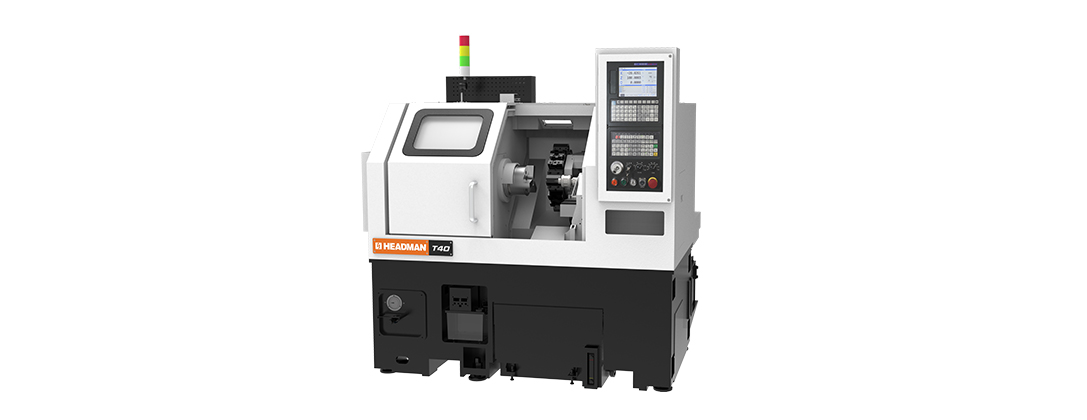

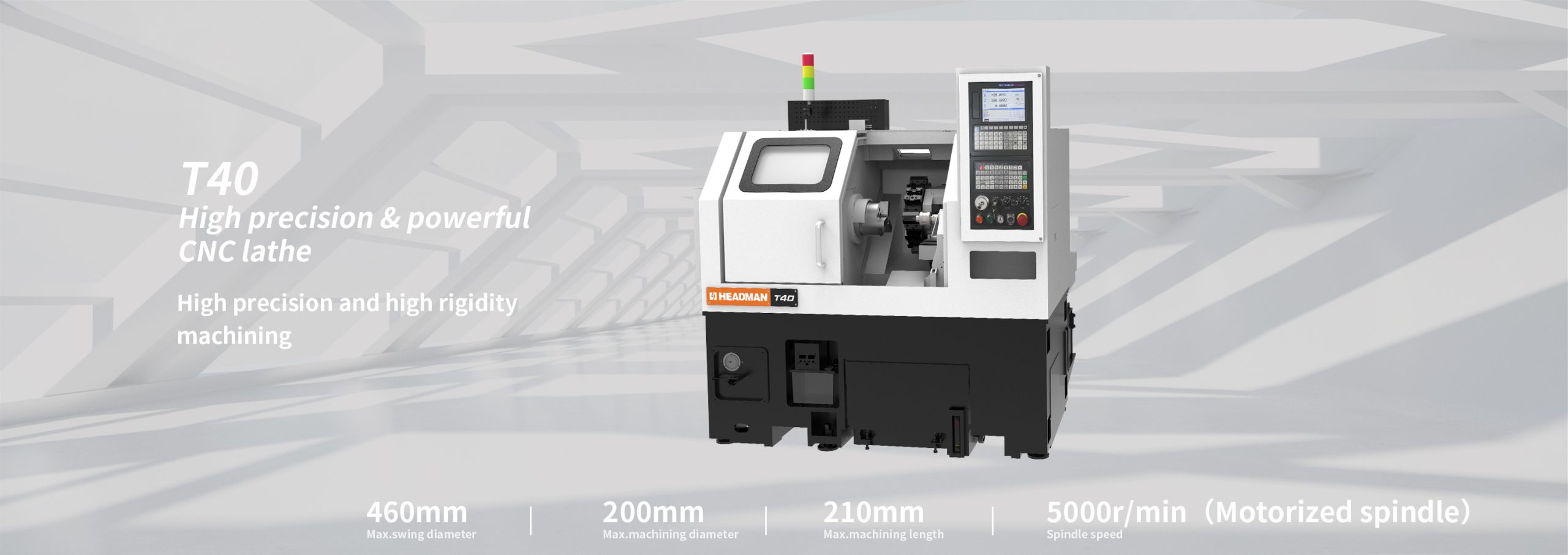

Product Highlights

  • High precision & rigidity synchronous servo built in motor spindle

    •High precision and high rigidity spindle structure

    High precision double-side dynamic balance struture

    • Quantification measurement of preload

    Spindle thermal equilibrium experiment

    Dynamic precision test

  • High precision & rigidity servo hydraulic turret

    • It adopts the basic structure with servo motor indexing, arc gear tooth positioning, hydraulic locking.

    • Turret index without lifting, reduce the tool change movement, avoid scraps & coolant entering inside of the turret to influence the positioning accuracy.

    • The toothed disk is tightly locked by hydraulic force to ensure that the 7Mpa high pressure cooling water still maintains enough tension when passing through the turret.

CNC system

  • High speed and high precision control

    It adopts GSKLink industrial Ethernet bus technology. The highest running speed is 100m/min. Gr-l series servo devices and servo motors with high resolution absolute encoders are standard equipped, which can be connected with grating scale, reluctance, magnetic grid, circular grating encoders, etc., to realize full closed-loop control of feeding axis and high-precision Cs axis control.

  • Simple and fast system debugging guide

    This function can list the parameters to be debugged according to the debugging steps, functional modules and other projects, so as to simplify the debugging process of machine tools.

  • Examine intelligently/Diagnosis technology

    It has the functions, including grammar check, track preview, machine tool fault diagnosis, as well as operation log, alarm log and machining log, which are convenient for program verification, fault diagnosis and maintenance.

  • It supports remote monitor and diagnosis

    Based on the Ethernet LAN interface, it can realize the remote monitor and fault diagnosis to CNC lathe, as well as the collection and analysis of reliable data, including the uploading and downloading data of machining doc, parameter doc, and tool deviation, etc., which truly realize the function of remote monitor. Besides, it supports FTP communication transfer protocol.

Technical Parameter

Machining range

Max. swing diameter 460mm
Max. machining diameter 200mm
Max. machining length 210mm
Max. bar through diameter 35mm


Max. spindle speed(built in motor spindle) 5000r/min
Spindle motor power(continous/30min) 5.5/7.5kw
Spindle nose 140 flange
Spindle bore 45mm


No. of tool stations 8
Tool change time 0.15s
Boring tool size 32mm
OD tool size 20mm*20mm


X axis 130mm
Z axis 260mm
X axis rapid feed speed 20m/min
Z axis rapid feed speed 24m/min


X axis bidirectional positioning accuracy 0.008mm
Z axis bidirectional positioning accuracy 0.008mm
X aixs repeatability positioning accuracy 0.003mm
Z aixs repeatability positioning accuracy 0.003mm


Length 1720mm
Width 1600mm
Height 1700mm
Weight 2460kg
