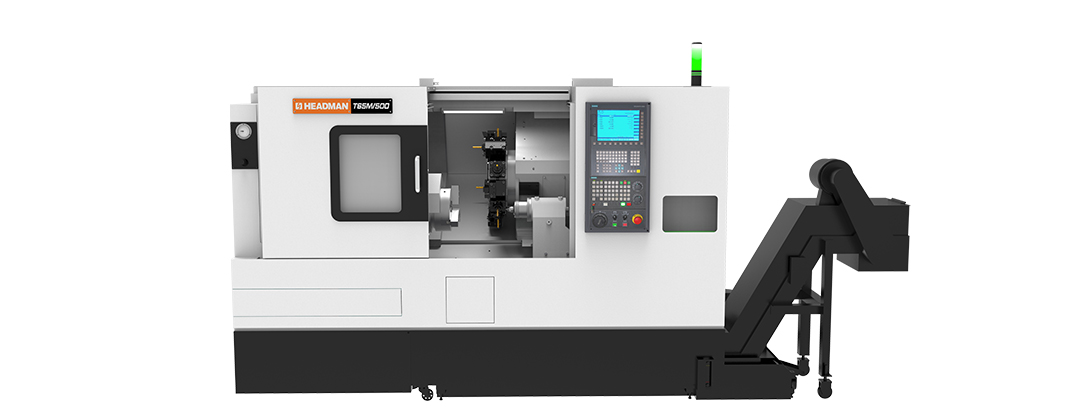

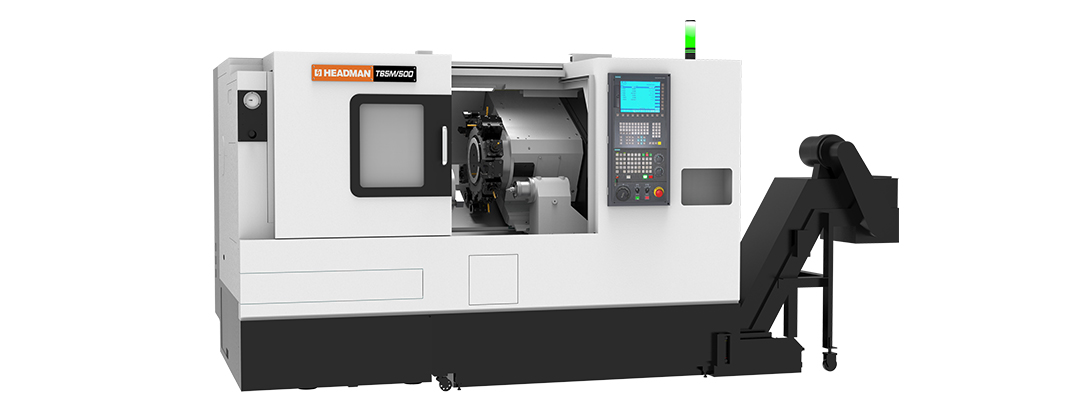

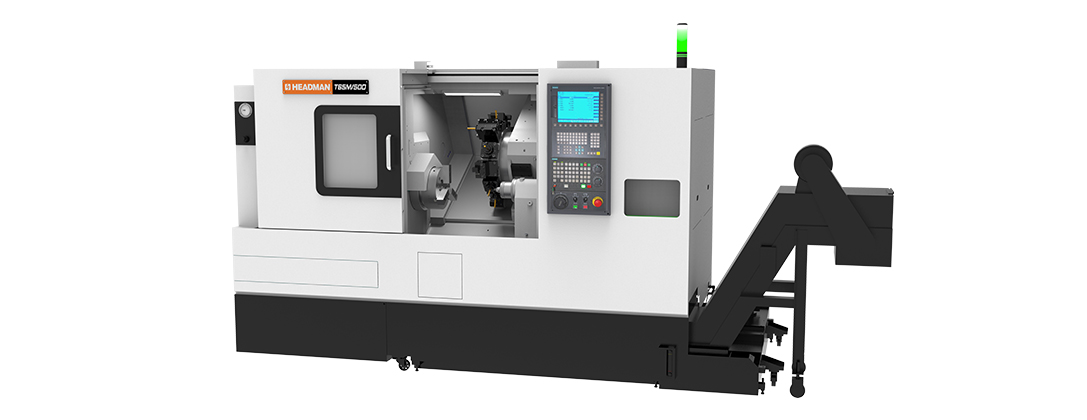

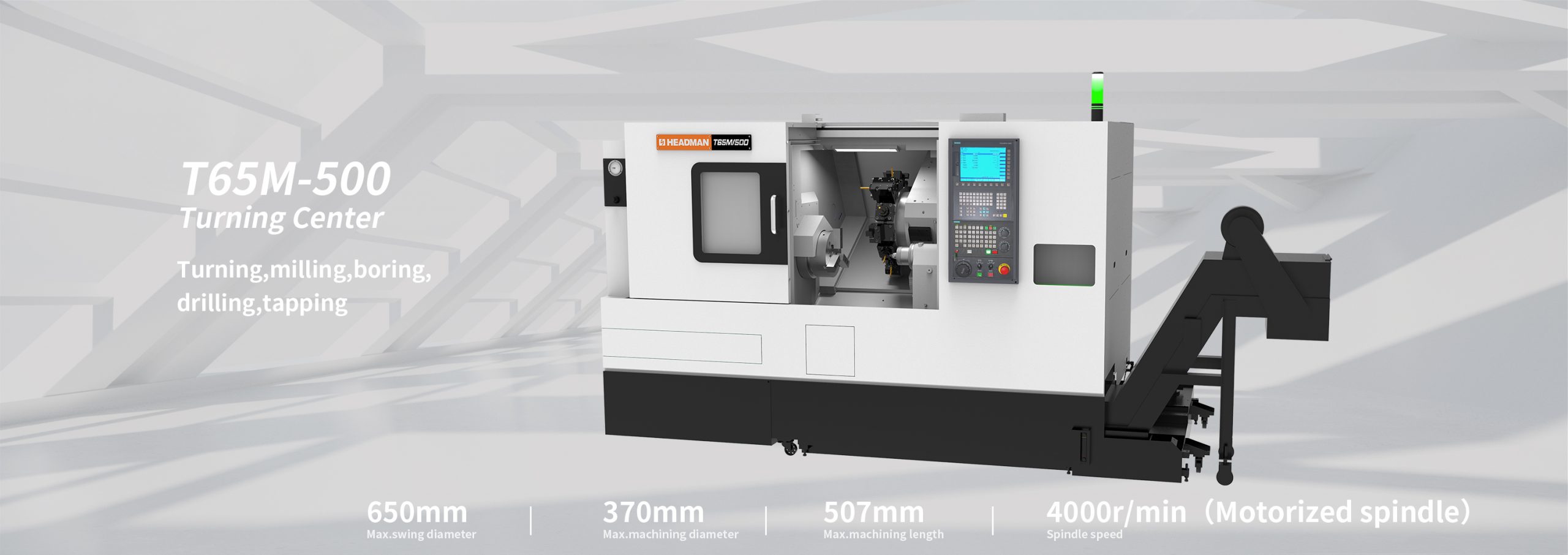

Product Highlights

  • High precision & rigidity synchronous servo direct drive built in motor spindle

    • The front bearing adopts high precision conical double roller bearing & ball bearing and row angular contact ball bearing,which can bear a greater axial load ,to realize heavy cutting and to replace the grinding.

    • Low speed and high torque, high output efficiency

    • Spindle driven by built-in motor directly, realize “zero transmission”. Compact design, light weight, low vibration, low thermal deformation. With characteristics of high torque by low speed and high speed. High precision on both dynamic and static, and high stability.

    • High precision, high rigidity, high stability, high efficiency.

    • Low vibration, low noise, good balance, good thermal characteristics.

  • High precision & rigidity servo hydraulic live turret

    • It adopts the basic structure with servo motor indexing, arc gear tooth positioning, hydraulic locking.

    • Turret index without lifting, reduce the tool change movement, avoid scraps & coolant entering inside of the turret to influence the positioning accuracy.

    • The toothed disk is tightly locked by hydraulic force to ensure that the 7Mpa high pressure cooling water still maintains enough tension when passing through the turret.

CNC system

西门子
  • Excellent performance

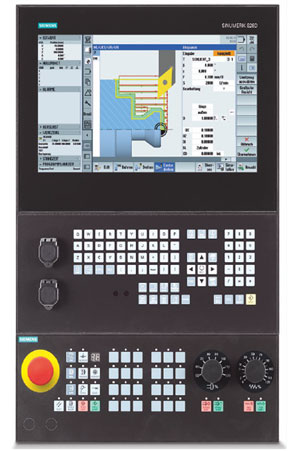

    SIEMENS828D has features such as 80 bit floating point nanometer calculation accuracy, ISO programming language compiler and compatibility with various programming languages, SMS function, numerical control simulation, animation support and so on.

  • Intelligent programming

    Intelligent programming makes machine operation simple by eliminating the need for operators to master complex G-codes (EIA/ISO). Real-time simulation of operation and programming in a PC environment allows for easy integration of process and programming.

  • Rugged and Maintenance free

    SIEMENS 828D system adopts die-cast magnesium operate panel fronts, the panel-base CNC design with just a few interfaces, as well as high degree of protection, reliable operation in harsh environments. SIEMENS 828D is a completely maintenance-free CNC.

  • User-friendly

    SIEMENS 828D system uses a full CNC keyboard with short stroke keysand a high resolution 10.4" TFT color display /15.6" touch display, extremely simple to operate. Equipped with USB, CF card (for 10.4")and RJ45 interfaces at the operator panel front, CNC data is quickly and easily transferred.

Technical Parameter

Machining range
Max. swing diameter 650mm
Max. machining diameter 370mm
Max. machining length 507mm
Max. bar through diameter 80mm
Spindle
Max. spindle speed 4000r/min
Spindle motor power(continous/30min) 22/26kW
Spindle nose A2-8
Spindle bore 91mm
Turret
No. of tool stations 12
Tool change time 0.25s
Boring tool size 40mm
OD tool size 25mm*25mm
Milling axis speed 5000r/min
Milling axis power 5.5kw
Travel
X axis 230mm
Z axis 612mm
X axis rapid feed speed 30m/min
Z axis rapid feed speed 33m/min
Tailstock
Tailstock quill diameter 80mm
Tailstock travel+quill travel 570mm
Tailstock cone taper M.T.4(dead type)
Tailstock type Servo
Standard size
Length 2685mm
Width 2000mm
Height 1783mm
Weight 4850kg
