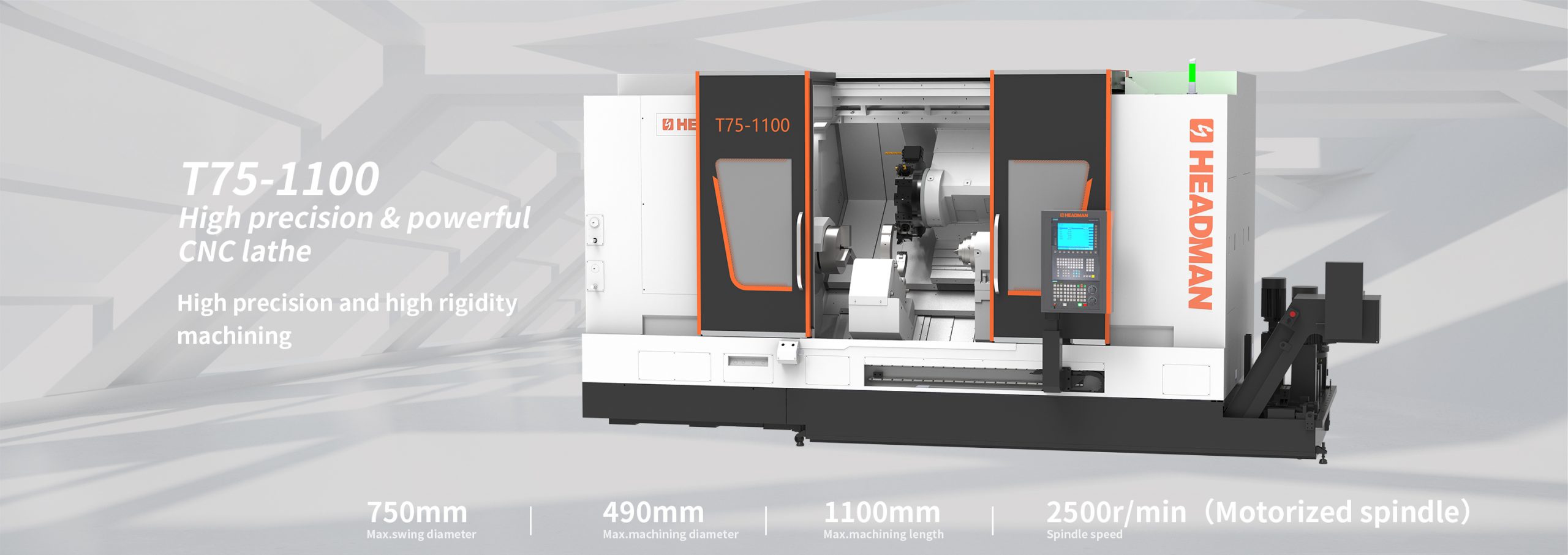

Appearance

Product Highlights

  • High precision & rigidity synchronous servo direct drive built in motor spindle

    • The front bearing adopts high precision conical double roller bearing & ball bearing and row angular contact ball bearing,which can bear a greater axial load ,to realize heavy cutting and to replace the grinding.

    • Low speed and high torque, high output efficiency

    • Spindle driven by built-in motor directly, realize “zero transmission”. Compact design, light weight, low vibration, low thermal deformation. With characteristics of high torque by low speed and high speed. High precision on both dynamic and static, and high stability.

    • High precision, high rigidity, high stability, high efficiency.

    • Low vibration, low noise, good balance, good thermal characteristics.

  • High precision & rigidity servo hydraulic turret

    • It adopts the basic structure with servo motor indexing, arc gear tooth positioning, hydraulic locking.

    • Turret index without lifting, reduce the tool change movement, avoid scraps & coolant entering inside of the turret to influence the positioning accuracy.

    • The toothed disk is tightly locked by hydraulic force to ensure that the 7Mpa high pressure cooling water still maintains enough tension when passing through the turret.

CNC system

西门子
  • Excellent performance

    SIEMENS828D has features such as 80 bit floating point nanometer calculation accuracy, ISO programming language compiler and compatibility with various programming languages, SMS function, numerical control simulation, animation support and so on.

  • Intelligent programming

    Intelligent programming makes machine operation simple by eliminating the need for operators to master complex G-codes (EIA/ISO). Real-time simulation of operation and programming in a PC environment allows for easy integration of process and programming.

  • Rugged and Maintenance free

    SIEMENS 828D system adopts die-cast magnesium operate panel fronts, the panel-base CNC design with just a few interfaces, as well as high degree of protection, reliable operation in harsh environments. SIEMENS 828D is a completely maintenance-free CNC.

  • User-friendly

    SIEMENS 828D system uses a full CNC keyboard with short stroke keysand a high resolution 10.4" TFT color display /15.6" touch display, extremely simple to operate. Equipped with USB, CF card (for 10.4")and RJ45 interfaces at the operator panel front, CNC data is quickly and easily transferred.

Technical Parameter

Machining range
Max. swing diameter 850mm
Max. machining diameter 510mm
Max. machining length 1100mm
Spindle
Max. spindle speed(built in motor spindle) 2500r/min
Spindle motor power(continous/30min) 49/74kw
Spindle nose A2-11
Spindle bore 132mm
Turret
No. of tool stations 12
Tool change time 0.25s
Boring tool size Φ50mm
OD tool size 32mm*32mm
Travel
X axis 360mm
Z axis 1245mm
X axis rapid feed speed 30m/min
Z axis rapid feed speed 30m/min
Precision
X axis bidirectional positioning accuracy 0.011mm
Z axis bidirectional positioning accuracy 0.016mm
X axis unidirectional positioning accuracy 0.003mm
Z axis unidirectional positioning accuracy 0.005mm
Standard size
Length 5567mm
Width 2550mm
Height 2868mm
Weight 16760kg

Contact us

*The product (including specific configuration, related details, appearance, technical parameters, etc.) is subject to the final actual product, and the design and specifications are subject to change without notice. The final interpretation right belongs to Heideman.
The specific configuration, related details, appearance, technical parameters, etc. mentioned in this product webpage are not binding.
Please confirm the specific retail transaction price, product configuration and transaction details with the official authorized agency and personnel. Other channels may cause the loss of your property and rights.
For more details, please visit Heidemann and various regional offices, or call 0576-87212222, 0576-87370888.
