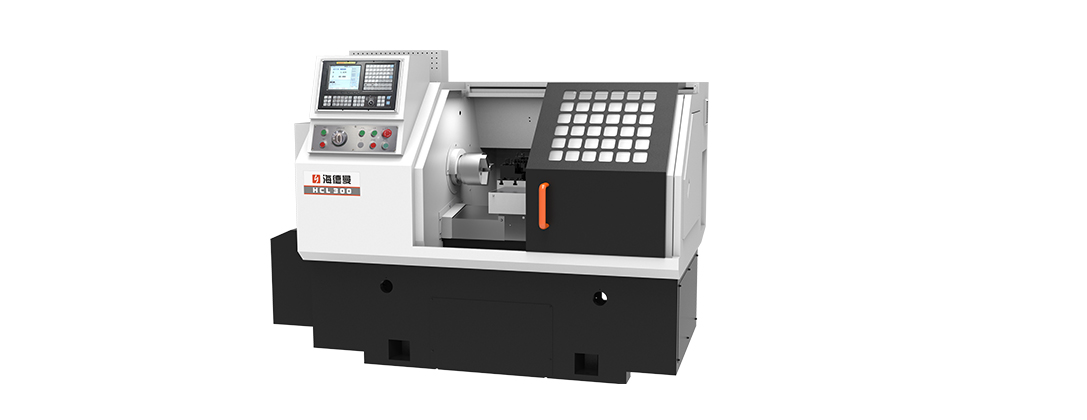

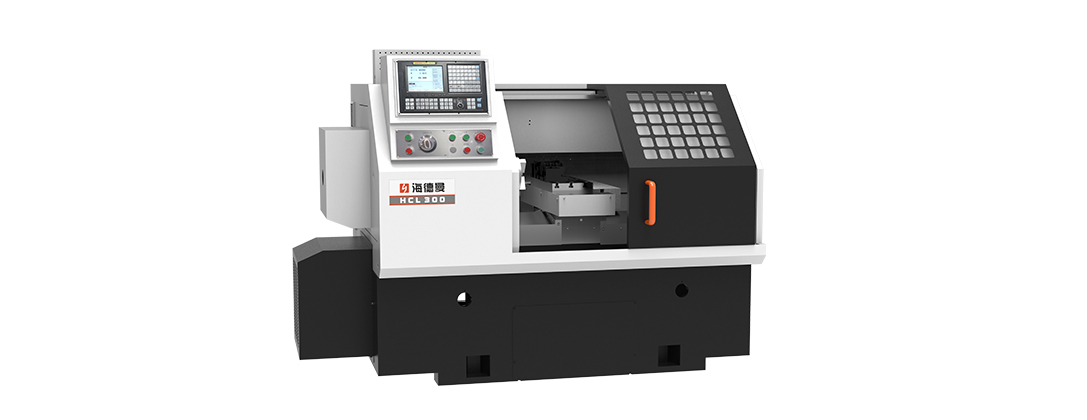

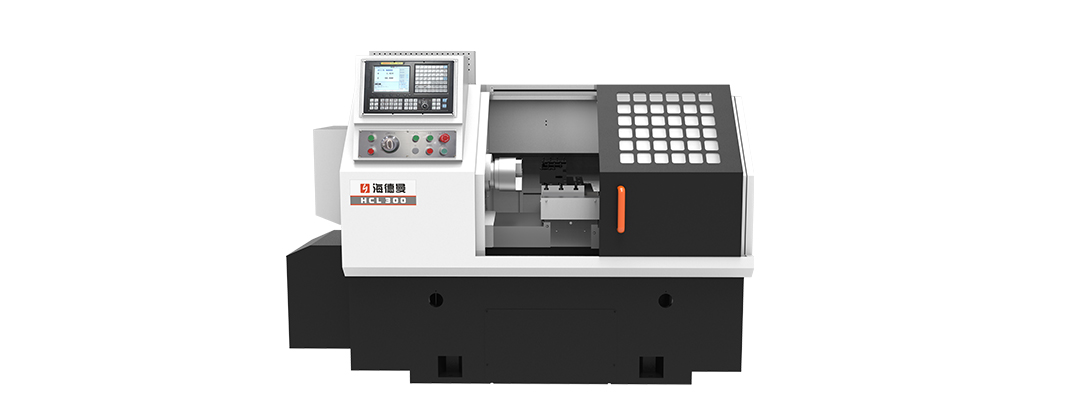

High precision & rigidity mechanical spindle
• High precision & rigidity mechanical spindle.
• High precision dynamic balance.
• Quantitative measurement of spindle rigidity.
• Spindle thermal balance test.
• Dynamic accuracy test.
Your current browser version is too low, in order to bring you a better browsing effect, please use a higher version browser
• High precision & rigidity mechanical spindle.
• High precision dynamic balance.
• Quantitative measurement of spindle rigidity.
• Spindle thermal balance test.
• Dynamic accuracy test.
It adopts GSKLink industrial Ethernet bus technology. The highest running speed is 100m/min. Gr-l series servo devices and servo motors with high resolution absolute encoders are standard equipped, which can be connected with grating scale, reluctance, magnetic grid, circular grating encoders, etc., to realize full closed-loop control of feeding axis and high-precision Cs axis control.
This function can list the parameters to be debugged according to the debugging steps, functional modules and other projects, so as to simplify the debugging process of machine tools.
It has the functions, including grammar check, track preview, machine tool fault diagnosis, as well as operation log, alarm log and machining log, which are convenient for program verification, fault diagnosis and maintenance.
Based on the Ethernet LAN interface, it can realize the remote monitor and fault diagnosis to CNC lathe, as well as the collection and analysis of reliable data, including the uploading and downloading data of machining doc, parameter doc, and tool deviation, etc., which truly realize the function of remote monitor. Besides, it supports FTP communication transfer protocol.
Machining range |
|
---|---|
Max. swing diameter | 350mm |
Max. machining diameter | 280mm |
Max. machining length | 210mm |
Max. bar through diameter | 35mm |
Spindle |
|
---|---|
Max. spindle speed(mechanical spindle) | 2800r/min |
Spindle motor power | 4Kw |
Spindle nose | A2-5 |
Spindle bore | 49mm |
Gang type tool | |
---|---|
Type | Gang type tool |
Boring tool size |
25mm |
OD tool size | 20mm*20mm |
Travel |
|
---|---|
X axis | 280mm |
Z axis | 350mm |
X axis rapid feed speed | 12m/min |
Z axis rapid feed speed | 15m/min |
Size | |
---|---|
Length | 2100mm |
Width | 1450mm |
Height | 1600mm |
Weight | 1270kg |
*The product (including specific configuration, related details, appearance, technical parameters, etc.) is subject to the final actual product, and the design and specifications are subject to change without notice. The final interpretation right belongs to Heideman.
The specific configuration, related details, appearance, technical parameters, etc. mentioned in this product webpage are not binding.
Please confirm the specific retail transaction price, product configuration and transaction details with the official authorized agency and personnel. Other channels may cause the loss of your property and rights.
For more details, please visit Heidemann and various regional offices, or call 0576-87212222, 0576-87370888.
